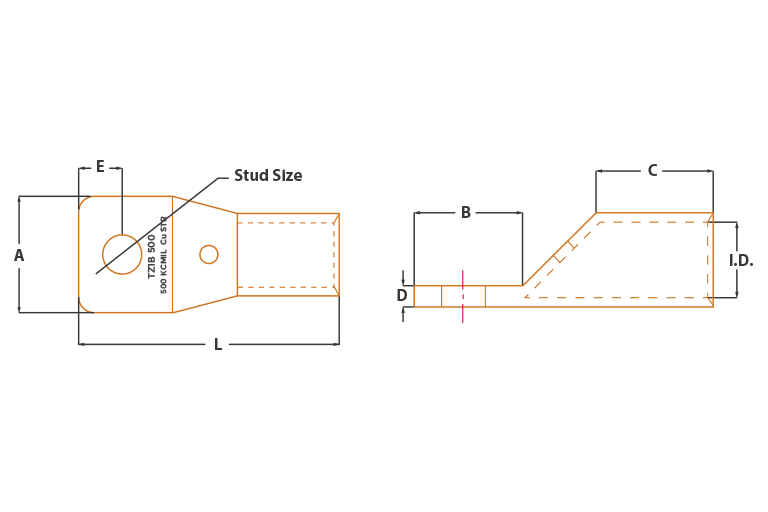

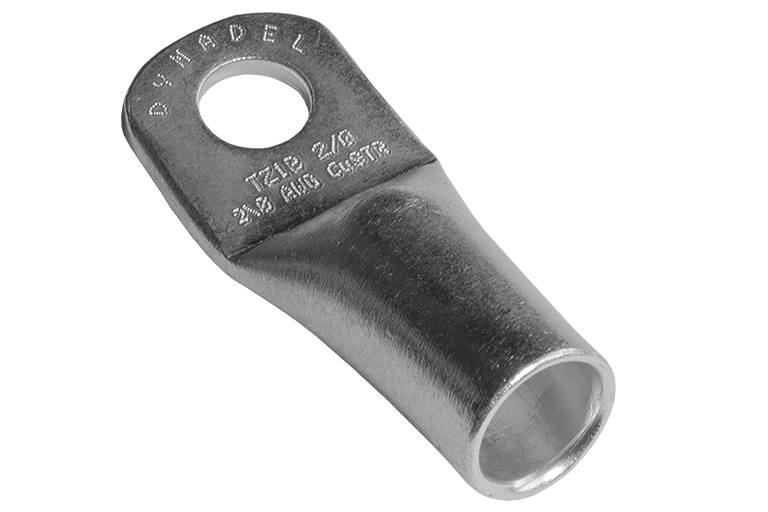

| Código Catálogo | Medida del conductor de cobre | A (in) | B (in) | C (in) | D (in) | E (in) | L (in) | I.D. (in) | Stud Size |
|---|---|---|---|---|---|---|---|---|---|
| TZ1B - 1/0 | 1/0 AWG | 0.74 | 0.91 | 0.98 | 0.13 | 0.39 | 2.28 | 0.4 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 2/0 | 2/0 AWG | 0.83 | 0.91 | 0.98 | 0.14 | 0.39 | 2.17 | 0.47 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 3/0 | 3/0 AWG | 0.98 | 1.18 | 1.1 | 0.13 | 0.5 | 2.95 | 0.53 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 4/0 | 4/0 AWG | 1.035 | 1.18 | 1.1 | 0.14 | 0.5 | 2.95 | 0.57 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 250 | 250 KCMIL | 1.17 | 1.38 | 1.38 | 0.16 | 0.62 | 3.54 | 0.65 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 350 | 350 KCMIL | 1.39 | 1.38 | 1.5 | 0.19 | 0.62 | 3.94 | 0.77 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 500 | 500 KCMIL | 1.63 | 1.38 | 1.5 | 0.18 | 0.62 | 3.94 | 0.93 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 600 | 600 KCMIL | 1.79 | 1.38 | 1.69 | 0.19 | 0.62 | 4.13 | 1.02 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 750 | 750 KCMIL | 1.99 | 1.38 | 1.69 | 0.23 | 0.62 | 4.33 | 1.13 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 800 | 800 KCMIL | 2.16 | 1.38 | 1.93 | 0.29 | 0.62 | 4.72 | 1.19 | 3/8, 7/16, 1/2 y 9/16 |
| TZ1B - 1000 | 1000 KCMIL | 2.31 | 1.38 | 1.93 | 0.22 | 0.62 | 4.92 | 1.34 | 3/8, 7/16, 1/2 y 9/16 |
