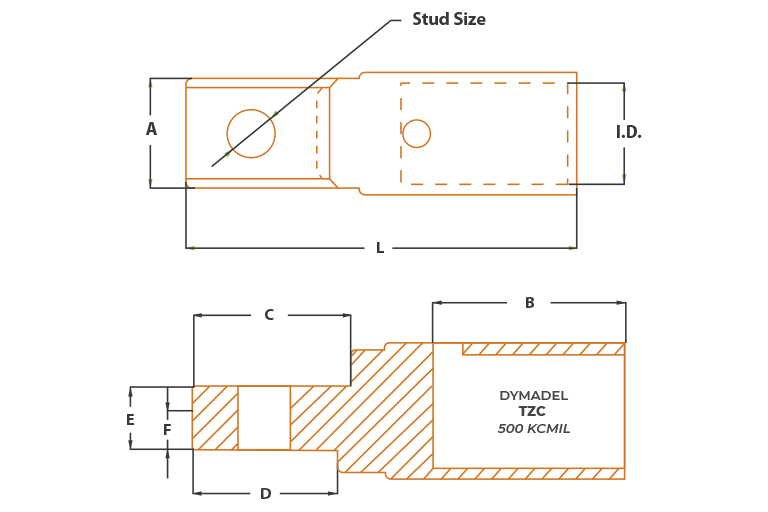

| Código Catálogo | Medida del conductor de cobre | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | L (in) | I.D. (in) | ɸ (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TZC 250 | 250 KCMIL | 1 | 1.57 | 1.3 | 1.18 | 0.51 | 0.31 | 3.54 | 0.65 | 7/16 |
| TZC 350 | 350 KCMIL | 1 | 1.57 | 1.3 | 1.18 | 0.51 | 0.31 | 3.54 | 0.77 | 7/16 |
| TZC 500 | 500 KCMIL | 1 | 1.57 | 1.3 | 1.18 | 0.51 | 0.31 | 3.54 | 0.93 | 7/16 |
| TZC 600 | 600 KCMIL | 1 | 1.57 | 1.3 | 1.18 | 0.51 | 0.31 | 3.54 | 1.02 | 7/16 |
| TZC 750 | 750 KCMIL | 1 | 1.57 | 1.3 | 1.18 | 0.51 | 0.31 | 3.54 | 1.13 | 7/16 |
| TZC 1000 | 1000 KCMIL | 1 | 1.57 | 1.3 | 1.18 | 0.51 | 0.31 | 3.54 | 1.34 | 7/16 |
